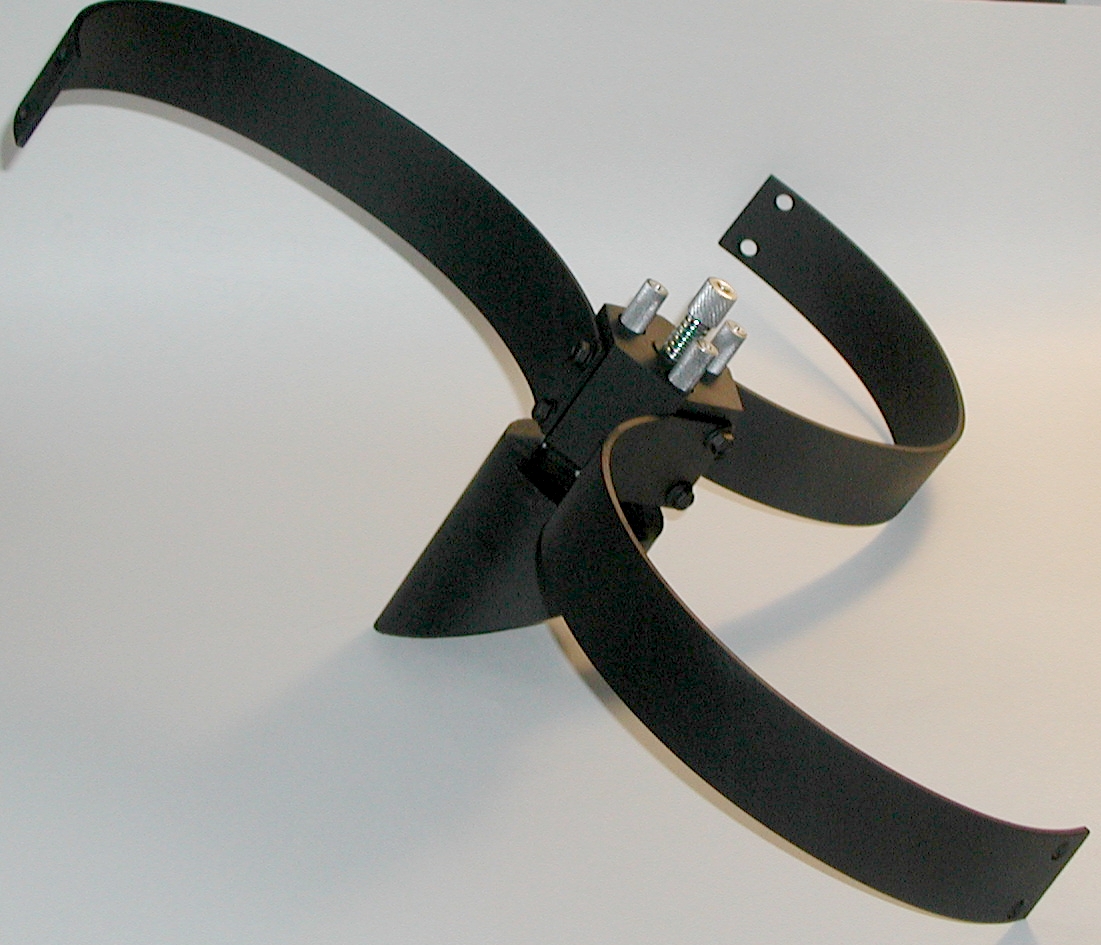

Extreme Curved Vane Telescope Spider.

This is a special spider, designed to minimize / eliminate  visible diffraction patterns. It is made primarily of aluminum, making it lightweight. The unique center bolt, Spring, and Tensioning Nut, make collimation simple and easy while allowing a large range for adjusting.

It features:

bulletEasy Front Access to Thumb Collimation Screws
bulletConstant tension of diagonal to Collimating Screws, make collimation easier than ever, and eliminating the need to tie down the final collimation position.
bulletAluminum block with vanes 1 1/2 tall by 1/8 thick (Block or Vanes maybe substituted for special needs)
bulletThis Curved Vane Spider is designed for large telescopes and can handle large secondary mirrors.
bulletThis Curved Vane Telescope Spider comes with the secondary holder.



  Minimum Maximum
Diagonal Size 2.5 inch Let us know and we will make it work
Spider Size 16 inch




Regular price: $299.95pad

Sale price: $259.95

Diagonal Size Mirror Size
Tube or Truss Cage Inside Diameter

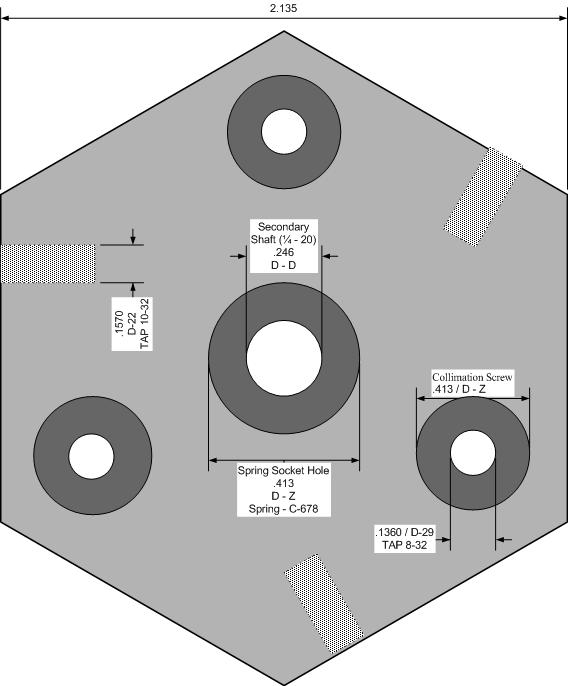

Current Block Spec.
