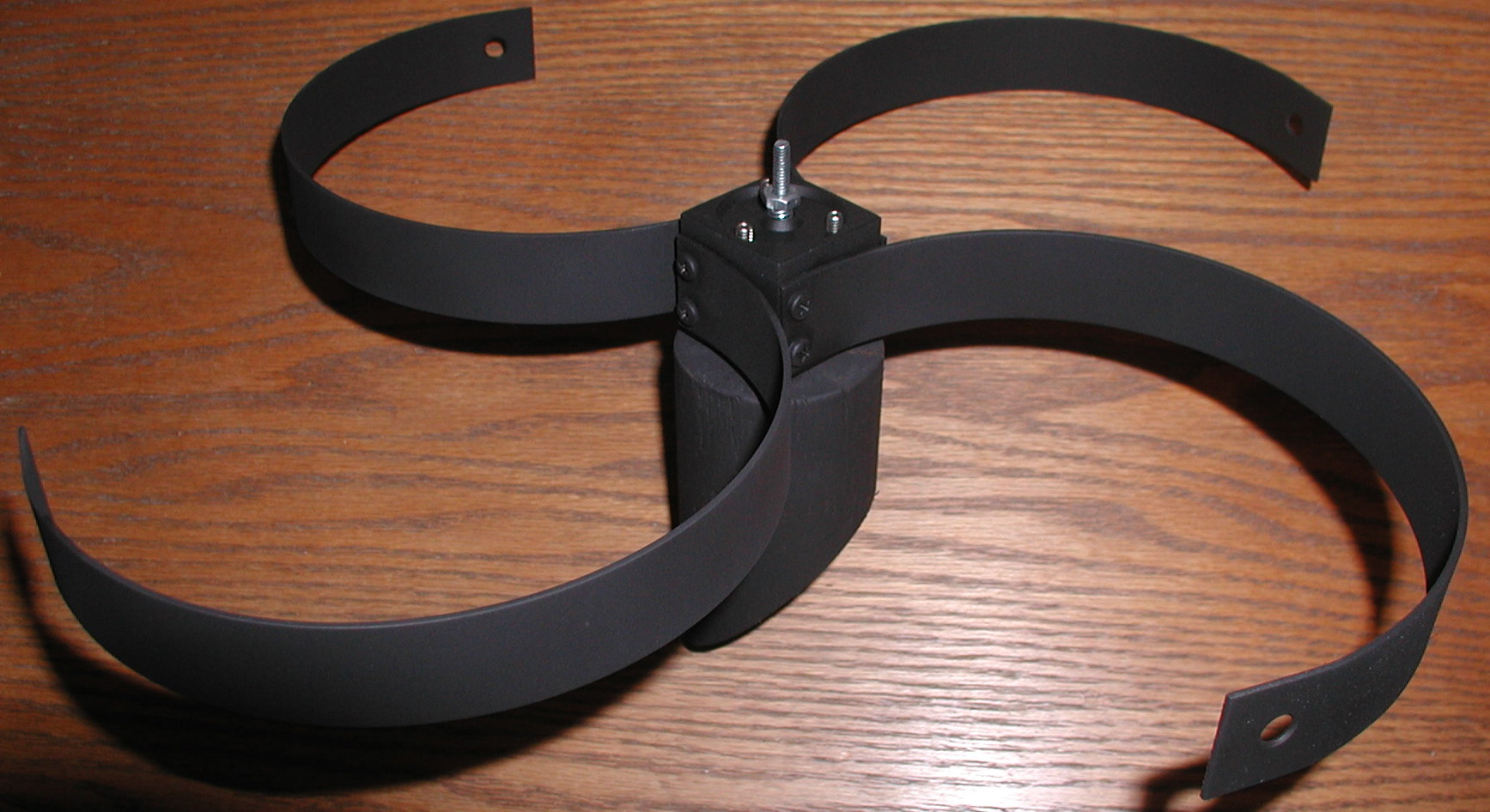

Professional Curved Four Vane Telescope Spider.

 The four vane spiders work well for 4 truss type telescopes. This is a special spider, designed to minimize / eliminate  visible diffraction patterns. It is made primarily of aluminum, making it lightweight. The unique center bolt, Spring, and Tensioning Nut, make collimation simple and easy while allowing a large range for adjusting.

 It also features:

bulletEasy Front Access to Stainless Steel  Collimation Screws
bulletAllen Wrench for Collimation
bulletConstant tension of diagonal to Collimating Screws
bulletLight weight aluminum block and vanes 1 1/2 tall by 1/16 thick
bulletThis Curved Vane Telescope Spider comes with the secondary holder.

  Minimum Maximum
Diagonal Size 2 inch 3.5inch
Spider Size 10 inch 18 inch



Regular price: $199.95

Diagonal Size
Tube or Truss Cage Inside Diameter
